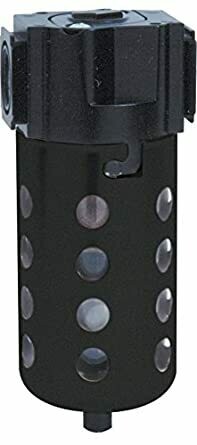

Particulate filters remove harmful oil/water condensate, pipe scale, dirt and rust from you compressed air system. This prevents corrosive damage to compressed air equipment and finished products. Typically, particulate filters are installed upstream of regulators to prevent valve failure. These are also used as pre-filters to oil removing and coalescing filters to insure high efficiency and long element life in applications such as paint spraying, instrumentation and pharmaceuticals.


• 40 micron sintered bronze element offers depth filtration. High strength, recleanable
• 5 oz. polycarbonate bowl with nickel plated steel bowl guard
• Manual push drain on polycarbonate bowl
• In-line or modular installation
• Manual 1/8" twist drain on metal bowls


SPECIFICATIONS
Polycarbonate Bowl - Max pressure 150 psig
• Operating temperature range 40° to 125°F
Internal Float Drain - Buna N Float
• Operating pressure range 30 to 175 psig
• Operating temperature range 40° to 160°F
Body - Black E coated aluminum
Baffle - Plastic
Vane - Plastic
Bowl Guard - Nickel Plated Steel
Seals - Buna N
Elements - 40 micron sintered bronze

DIMENSIONS: 1/4" inlet and outlet, 6.25" tall, 2.75" wide

WEIGHT: 2 LBS.
