High grade filter element

Element construction of injection molded thermoplastic

Integrated gasket seal

Positive seal between housing hemispheres

New seal with each element

Minimizes parts

Optimal surface area per given size

Pleated media for high dirt holding capacity

Element Part Number

Polyester Paper

Dimensions - inches

O.D. H.T.

Surface Area ft2

Element

SCFM

Rating

03 02 1 1/2 1 0.1 3

05 04 2 1/4 1 0.2 8

07 06 3 1 3/8 0.58 12

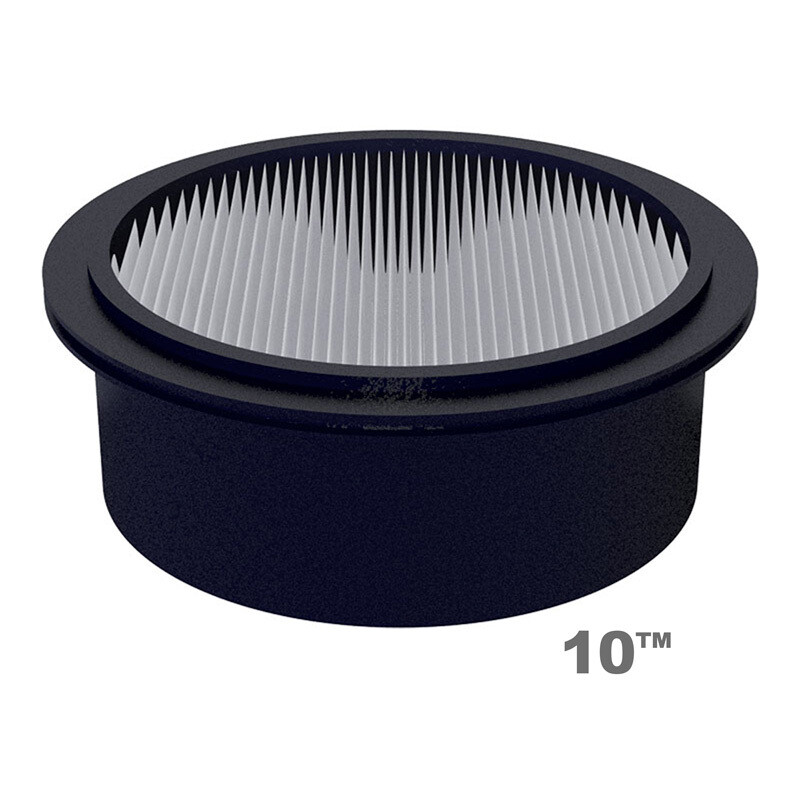

11 10 4 1 3/8 1.1 35

17* 16 8 3 1/4 8 250

See Element Technical Data for maintenance guidelines. Contact factory for options.

Polyester Media Benefits/Specs

Less maintenance due to longer durability

Moisture resistant

Handles hot air and oil mist from unload cycle of

reciprocating/piston compressor

Washable with lukewarm water and mild detergent (replacing element is recommended)

Paper Media Benefits/Specs

Heavy duty industrial strength paper

Cost effective

Gently blow out media (replacing element is recommended)

*Minimum order quantity applies.

OD

HT

Polyester Element Features

■■ Identified typically by “odd number” nomenclature: i.e.

19, 235P

Pleated industrial needle felt polyester media

Reinforced with epoxy coated steel wire on both sides of the media

Dust loading capacity is increased 40-50% with prefilter

“P” designation at end of element part number i.e.: 235P

Technical Specifications

5 micron, 99+% efficiency

Media classification: EU8, F8

Temperature min: -15°F (-26°C), max: 220°F (104°C)

Advantages

Less maintenance: washable

More durable

Moisture resistant

Handles hot air and oil mist from unload
