119CSS ASME Code High Flow Brass Safety Valve with Stainless Steel Ball

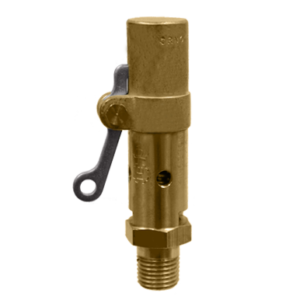

The Kingston Model 119CSS High Capacity Safety Valve is an ASME Code Certified, precision machined brass valve with a hard seat. This valve supports ASME Code applications up to 300 psi. It also features a stainless steel ball for durability and a lever for manual testing. Kingston Model 119CSS High Capacity Safety Valve is designed to flow extremely high volumes. Internal construction and performance are the same as Model 118CSS differing only by the lever used for manual testing. The Kingston Model 119CSS Safety Valve, like every Kingston Safety Valve, is set and tested at factory for quality and dependability. Registered in all Canadian provinces and territories. Set pressure range 25 to 300 psi (5 psi increments only). Maximum temperature 400°F.

DIMENSIONS 4.25 X 1.25

WEIGHT 2 LBS
